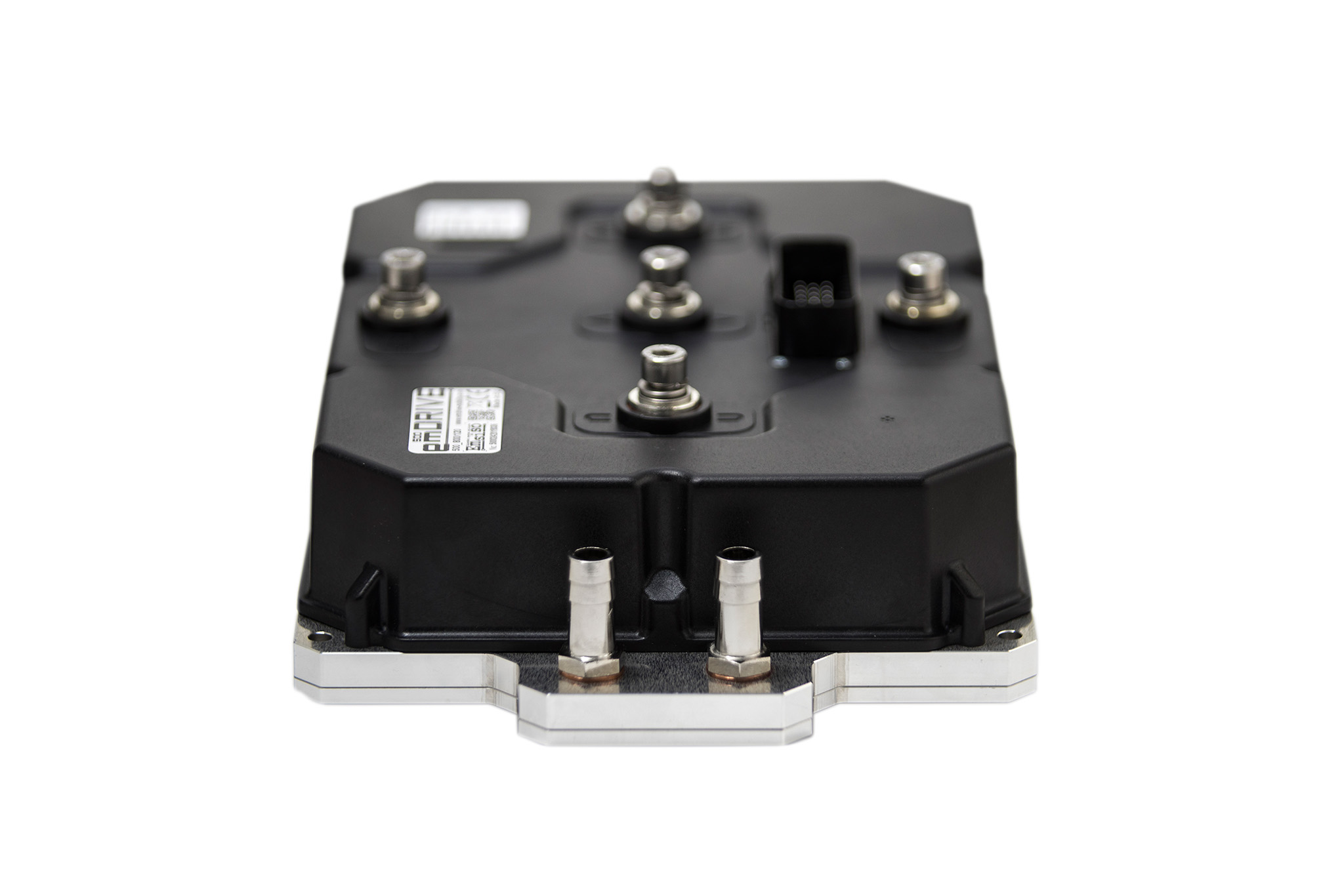

DRIVESemDrive 500

General emDrive information:

  • Advanced motor controllers for electric propulsion systems supporting BLDC, PMSM, IPM, induction (optional) motors
  • CANOpen compatible (device profile CiA DSP 402)
  • Multiple rotor position sensor supported
  • Field oriented control (FOC)
  • Automatic field weakening mode using outer voltage control
  • Four quadrant operation
  • Integrated speed control
  • Analog input to control motor torque or motor speed
  • Various protection functions for controller and motor

Key specifications:

  • Battery voltage range: 30-120 V
  • Current ratings (continuous/1 min. peak): 500/800 Arms
  • Continuous power rating: 60/110 kVA
  • Dimensions (HxWxL): 78 x 310 x 205 mm
  • Weight: 4,9 kg
  • Liquid cooled
